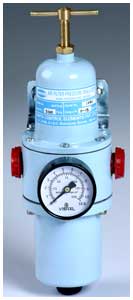

Air Filter Regulator(High Pressure Series)
|
Prev | Next
 |
| |
| |
|
| Specifications: |
| Type |
: |
Filter cum
Regulator;Spring & Diaphragm;Self
Regulating |
| Bleed |
: |
Intermittent / Continuous |
| Conn. Sizes |
: |
¼inch to 2inch
NPT / BSP (F) |
| Service |
: |
Air / Gases |
| Max. Supply pr. |
: |
32 Kg/Cm2 [455
Psig] |
| Temperature |
: |
-29°C to 82°C
[-20°F to 180°F] |
| Secondary Pr. |
: |
0.6-18.0 Kg /Cm2
[8.5-250 Psig]*{adjustable} |
| Body & Bowl |
: |
Bar Aluminum; EN-8; Stainless
Steel |
| Bonnet |
: |
Die Cast |
| Diaphragm |
: |
Reinforced Nitrile /Teflon
/ SS316 |
| Filter |
: |
5 / 25 Microns |
| Filter Moc |
: |
Sintered Bronze / ABS |
| Internals |
: |
SS / Brass |
| *Higher Pressures
available on request |
|
|
| |
| Features : |
- Rugged Construction to withstand high
pressures
|
- Tight Shutoff for constant Set Pressure
|
|
|
|
- Long life & Reduced Maintenance
|
|
|
|
