Standard Searies AFR (with Polycarbonate Bowl & Metallic Bowl)

Prev | Next

Polycarbonate Bowl

Metallic Bowl

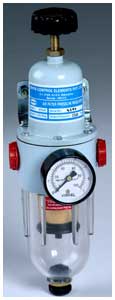

Where transparency is an important criteria, We provide the customers with our SFRJN(Standard) Air Filter Regulator with Polycarbonate Bowl.

The Polycarbonate Bowl is Transparent Shatter Proof & is capable of holding Pressure upto 10.6 Kg/Cm² at
49 °C.The bowl capacity is 0.2 Lts.

The connections available range from " -1" BSP/NPT(F) As the port is larger, the flow achieved is also high.

The output Pressure that can be provided ranges from 0-2.1 Kg/Cm² to 0-15 Kg/Cm².

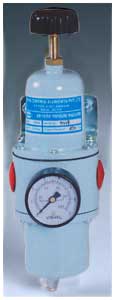

Air set with metallic bowl has a pressure withstand capacity of 18 Kg/Cm² at 80 °C.
