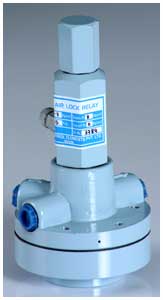

Air Lock Relay |
Prev |
Next  |
 |
| |
|
| Specification |
|
|
| Conn.size |
: |
¼ inch NPT/BSP (F) |
| Service |
: |
Inst. Air |
| Max. Suppliy Pr. |
: |
100 Psig |
| Cut-off Range |
: |
21-100 Psig (adjustable)
[Standard] |
| Signal Pr. |
: |
3-15 Psig [Standard] |
| Type |
: |
Single Acting |
| Body, Bonner & |
: |
Die Cast AI |
| Diaphram Plate |
|
|
| Diaphram |
: |
Nitrile/Neoprene |
| Internals |
: |
Brass/SS304 |
| Spring |
: |
SS304 |
| Adjusting Screw |
: |
Ss304/Brass |
| |
|
|
Features
|
|
|
|
Effective during supply
failure |
|
Maintains correct actuator
position |
|
Cut-off pressure adjustable
as desire |
|
Soft seat design ensuring
low air consumption |
|
Simple & reduces maintenance |
|
Cost competitive |
|
| |
|
|
| |
