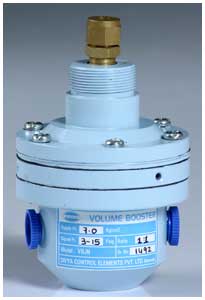

Volume Booster |
Prev | Next
 |
 |
| |
|
| Specification |
|
|
| Conn.size |
: |
¼ inch NPT/BSP
(F)
(Sizes available on request) |
| |
|
| Service |
: |
Inst. Air |
| Max. Suppliy Pr. |
: |
100 Psig |
| Input/Output Ratio |
: |
1:1 (Standard) |
| Optional Input/Output Ratio |
: |
1:2~1:3~1:4 |
| Flow Capicity |
: |
10 SCFM |
| Reproductibility |
: |
0.1% |
| Body |
: |
Bar AI |
| Housing |
: |
Brass/SS304 |
| Diaphram |
: |
Reinforced Nitrile |
| Spacer |
: |
Brass |
| Spring |
: |
SS304 |
| |
|
|
Features
|
|
|
|
Improve Actuator Stroking
Speed |
|
Soft seat design ensuring
low air consumption |
|
Maintains correct actuator
position |
|
NACE Construction available
for corresive applications |
|
| |
|
|
| |
